Endocrine System

Adrenal Gland

    Narrative

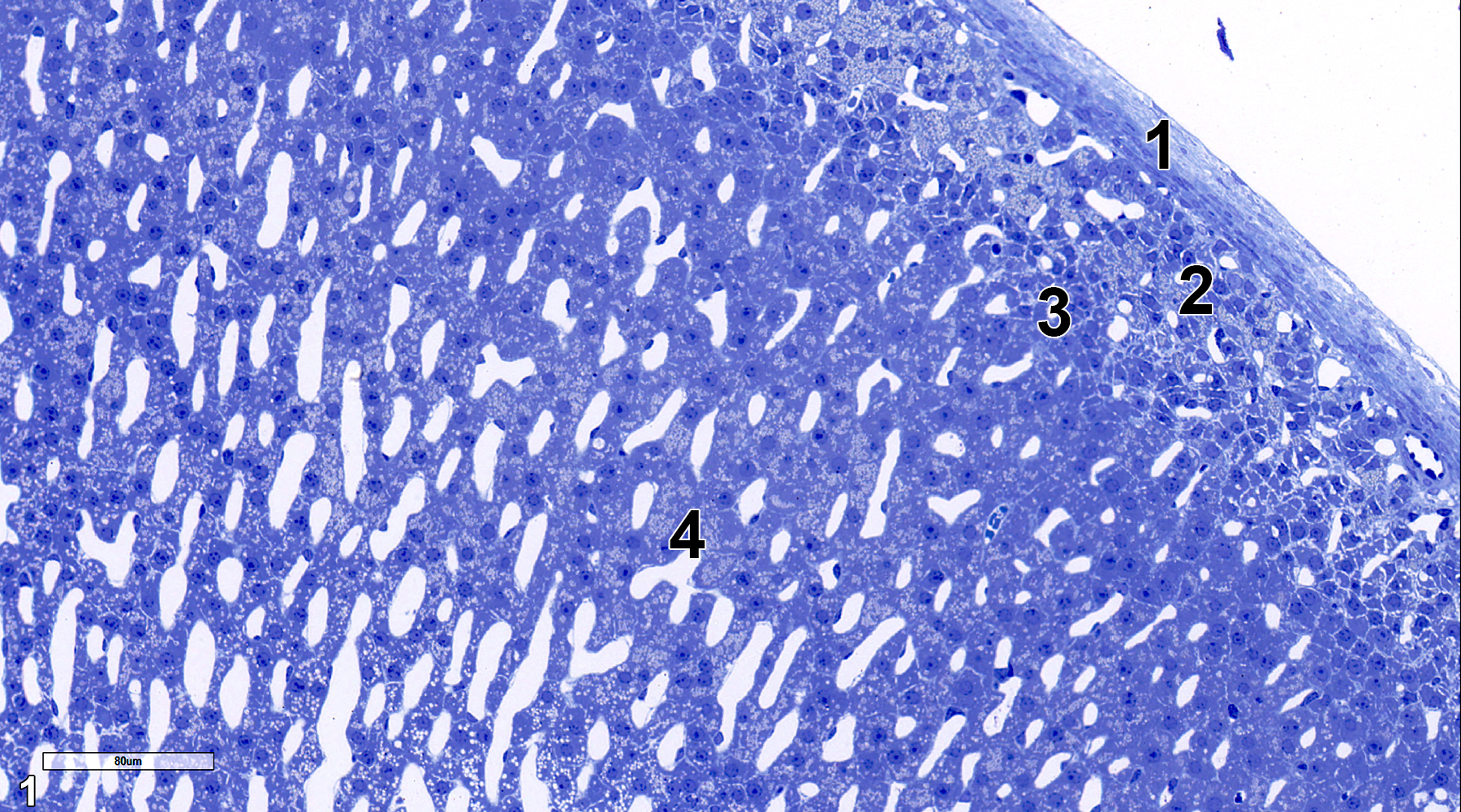

    <strong>Figure 1.</strong> A 0.5 micrometer thick section stained with toluidine blue O, showing the adrenal capsule (1), zona glomerulosa (2), zona fasciculata (3), and the zona reticularis (4). 25x.
    Figure 1. A 0.5 micrometer thick section stained with toluidine blue O, showing the adrenal capsule (1), zona glomerulosa (2), zona fasciculata (3), and the zona reticularis (4). 25x.

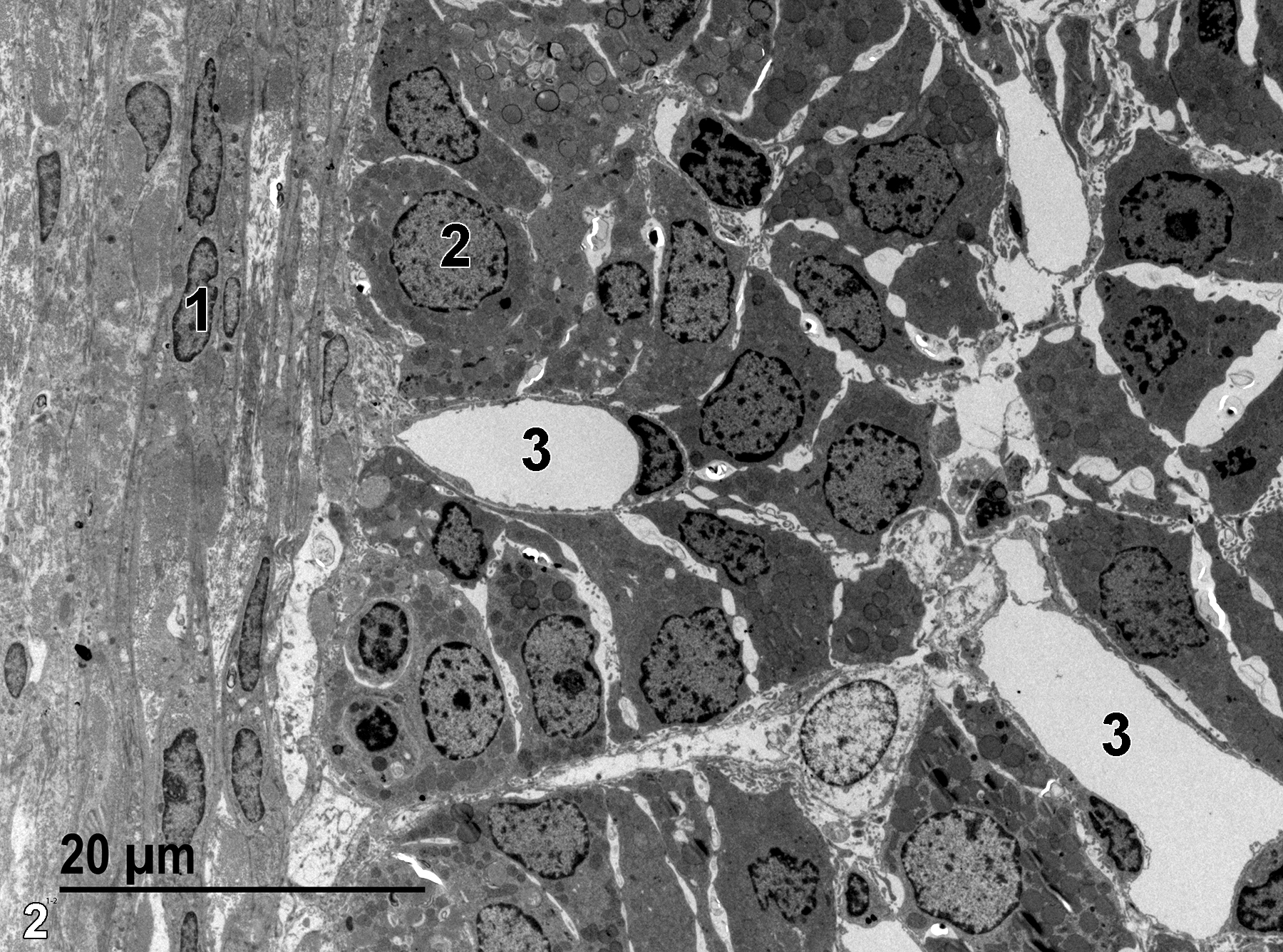

    <strong>Figure 2.</strong> A nucleus of a capsular smooth muscle cell (1) and a nucleus of a zona glomerulosa epithelial cell (2), as well as several capillaries (3). 1900x.
    Figure 2. A nucleus of a capsular smooth muscle cell (1) and a nucleus of a zona glomerulosa epithelial cell (2), as well as several capillaries (3). 1900x.

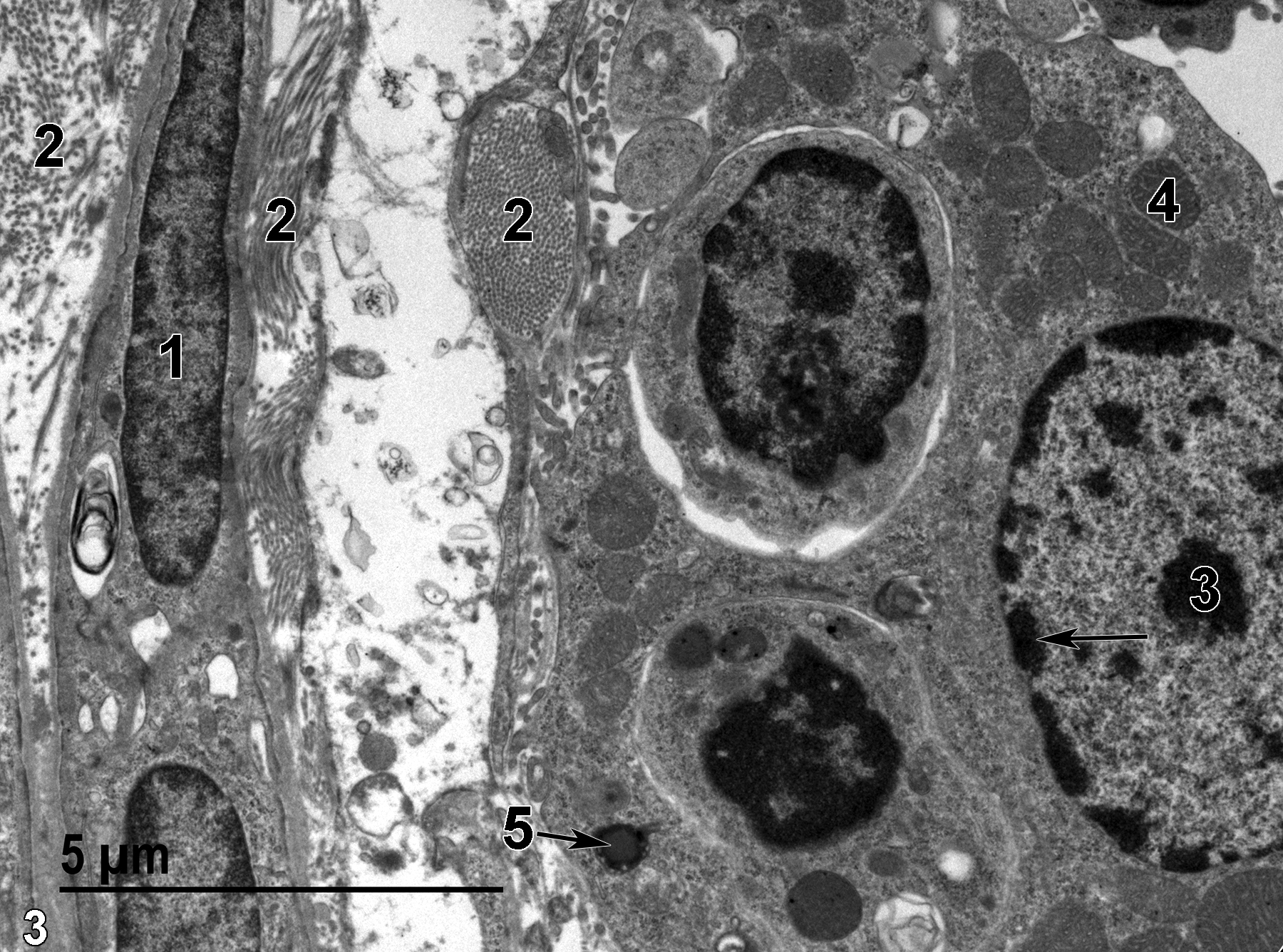

    <strong>Figure 3.</strong> A higher magnification view of the region shown in Figure 2. The smooth muscle cell within the capsular layer (1) is associated with clusters of collagen (2). The nucleus of an epithelial cell has a single nucleolus (3) and marginated heterochromatin (arrow). The cytoplasm has a number of mitochondria (4). A relatively rare lipid droplet (5, arrow) is shown. 9300x.
    Figure 3. A higher magnification view of the region shown in Figure 2. The smooth muscle cell within the capsular layer (1) is associated with clusters of collagen (2). The nucleus of an epithelial cell has a single nucleolus (3) and marginated heterochromatin (arrow). The cytoplasm has a number of mitochondria (4). A relatively rare lipid droplet (5, arrow) is shown. 9300x.

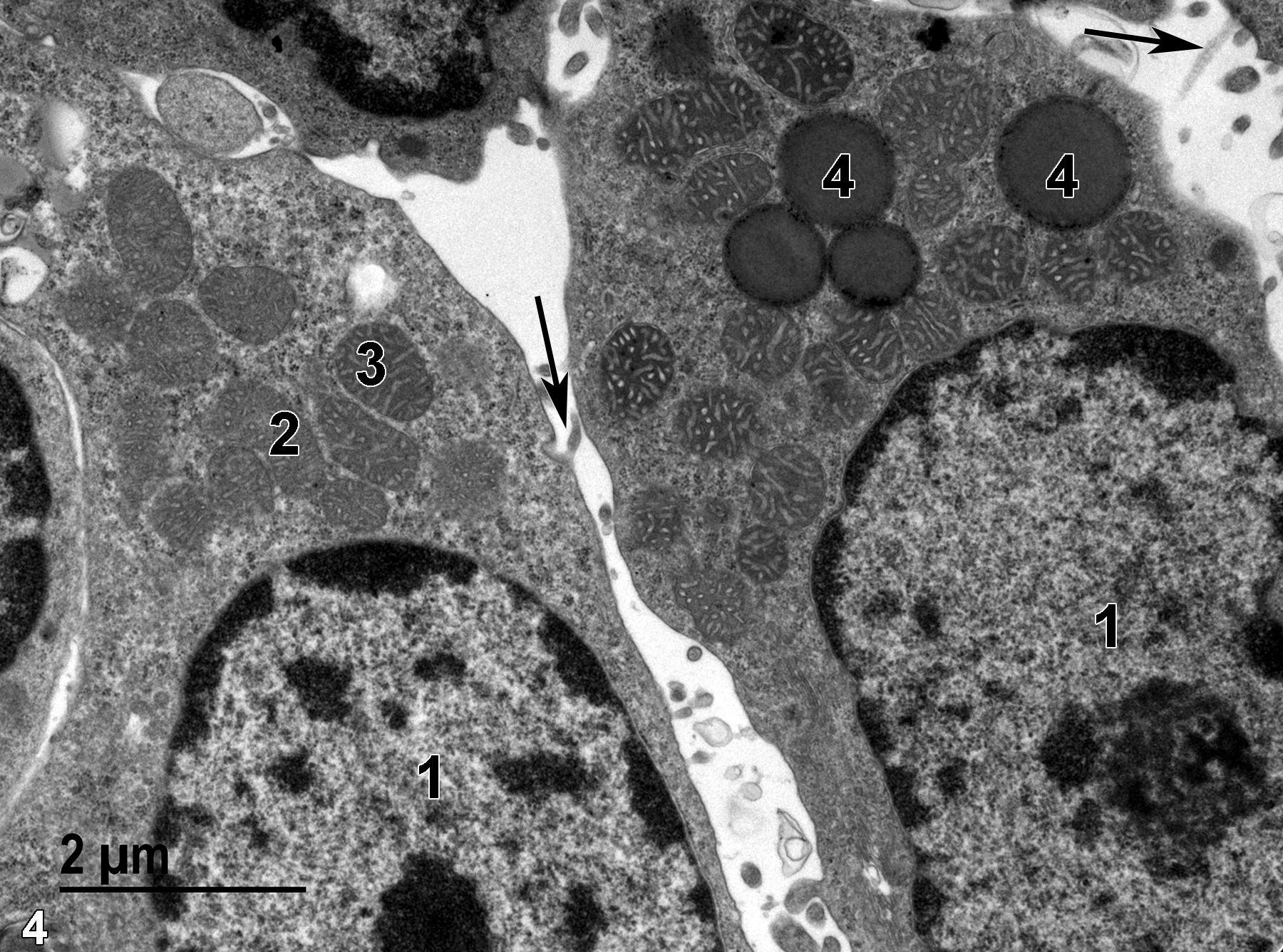

    <strong>Figure 4.</strong> A still higher magnification view of zona glomerulosa epithelial cells showing nuclei (1) with prominent nucleoli and marginated heterochromatin, mitochondria with vesicular cristae (2) when cut in cross section, and tubular cristae (3) when cut in a more longitudinal section. Lipid droplets (4) are relatively electron dense. The surface of the epithelial cells have microvilli (arrows) protruding into the intercellular spaces. Clusters of dark particles are found throughout the cytoplasm, which are particulate glycogen and free ribosomes. 13000x.
    Figure 4. A still higher magnification view of zona glomerulosa epithelial cells showing nuclei (1) with prominent nucleoli and marginated heterochromatin, mitochondria with vesicular cristae (2) when cut in cross section, and tubular cristae (3) when cut in a more longitudinal section. Lipid droplets (4) are relatively electron dense. The surface of the epithelial cells have microvilli (arrows) protruding into the intercellular spaces. Clusters of dark particles are found throughout the cytoplasm, which are particulate glycogen and free ribosomes. 13000x.

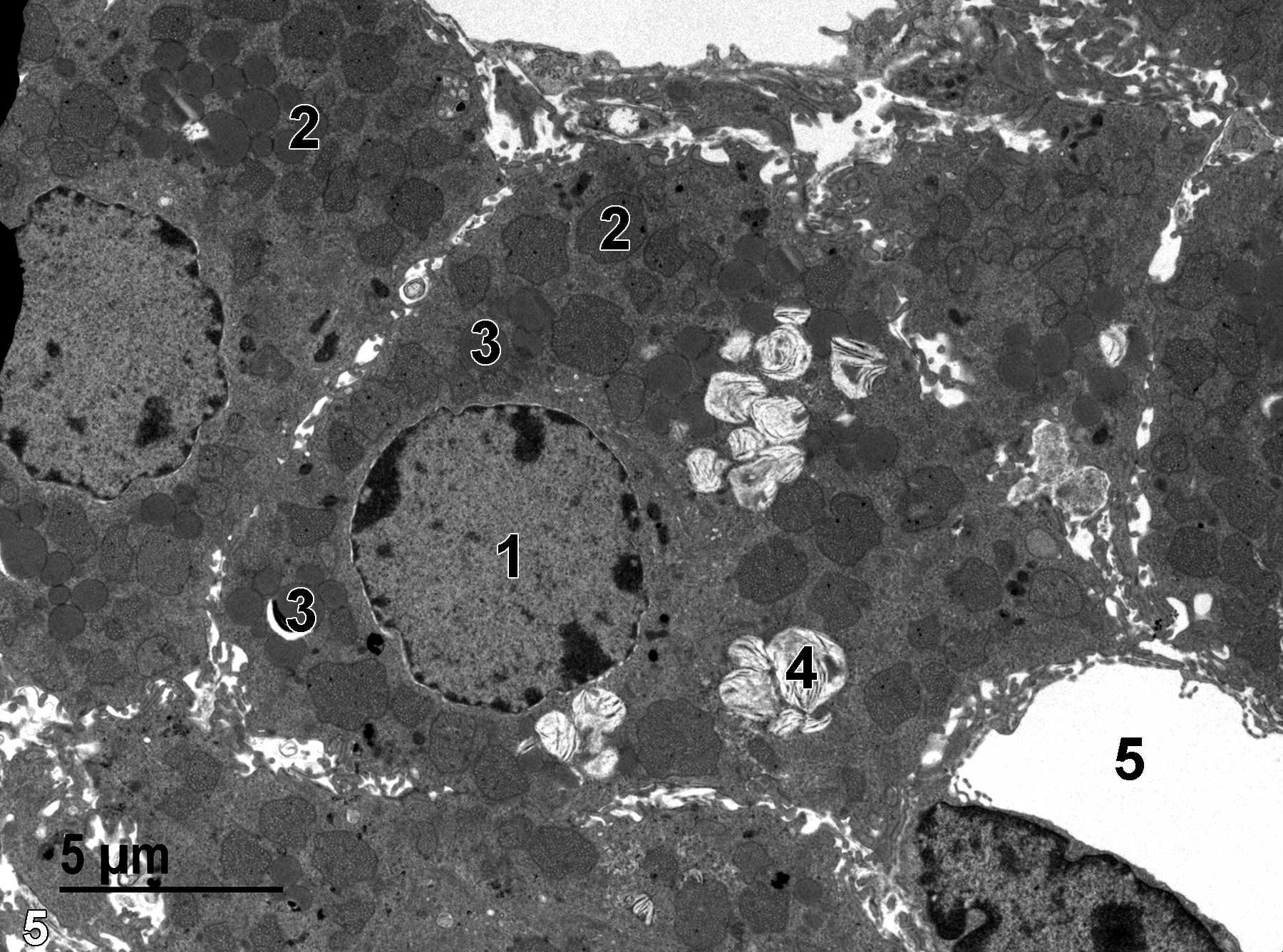

    <strong>Figure 5.</strong> Cells from the zona fasciculata. The epithelial cells have microvilli at the surface, single nuclei (1) with marginated heterochromatin, numerous mitochondria (2), lipid droplets with mostly homogeneous content (3), and lipid droplets that contain large number of membranous profiles (4). A capillary (5) with a prominent endothelial nucleus is shown. 4800x.
    Figure 5. Cells from the zona fasciculata. The epithelial cells have microvilli at the surface, single nuclei (1) with marginated heterochromatin, numerous mitochondria (2), lipid droplets with mostly homogeneous content (3), and lipid droplets that contain large number of membranous profiles (4). A capillary (5) with a prominent endothelial nucleus is shown. 4800x.

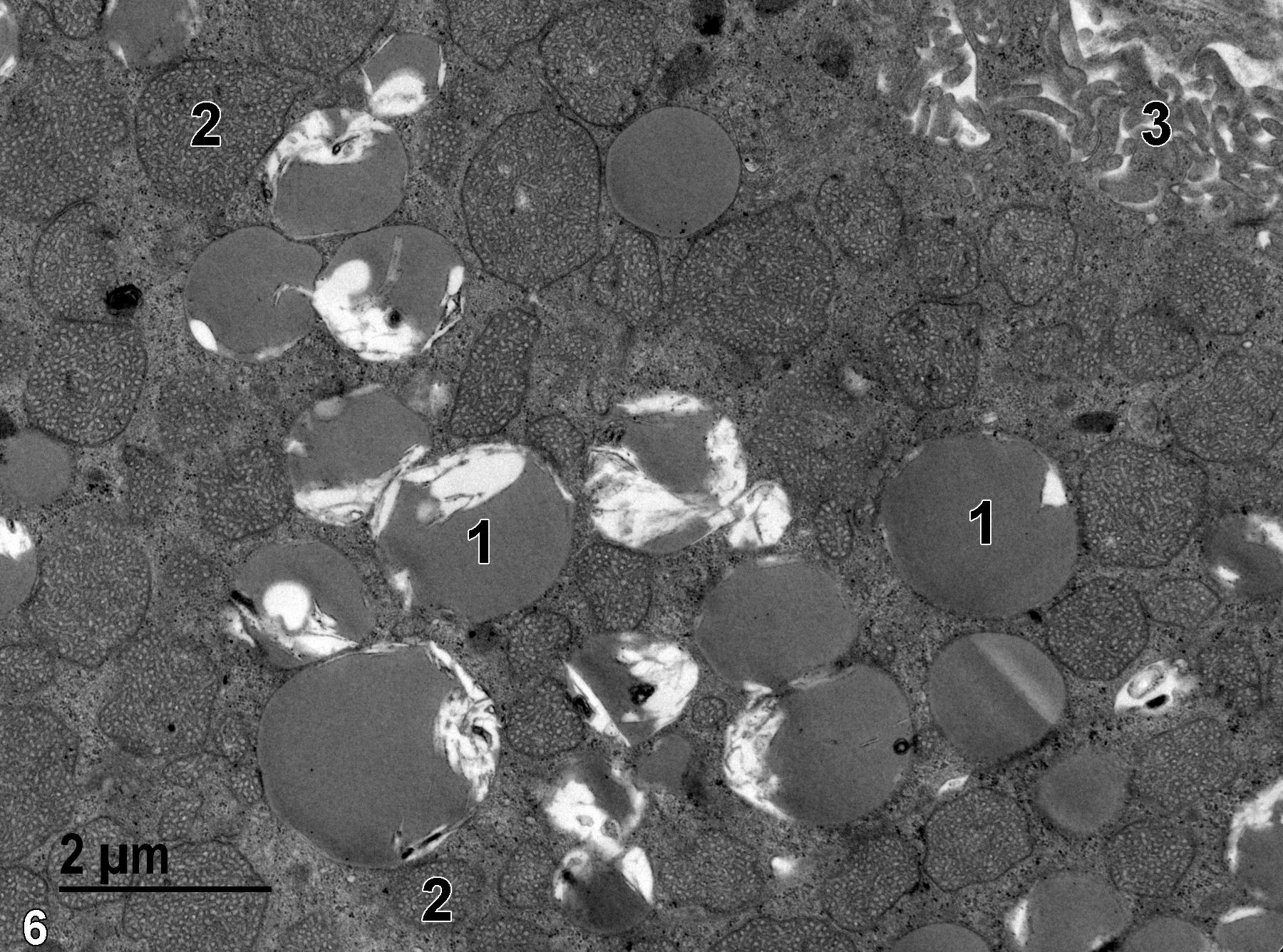

    <strong>Figure 6.</strong> A higher magnification view of the content of a zona fasciculata cell. The cell is densely packed with mitochondria (2) and lipid droplets (1), some of which have homogeneous electron-dense contents, and others with variable amounts of membranous profiles. The microvilli (3) at the surface of the cell are numerous in this view. 11000x.
    Figure 6. A higher magnification view of the content of a zona fasciculata cell. The cell is densely packed with mitochondria (2) and lipid droplets (1), some of which have homogeneous electron-dense contents, and others with variable amounts of membranous profiles. The microvilli (3) at the surface of the cell are numerous in this view. 11000x.

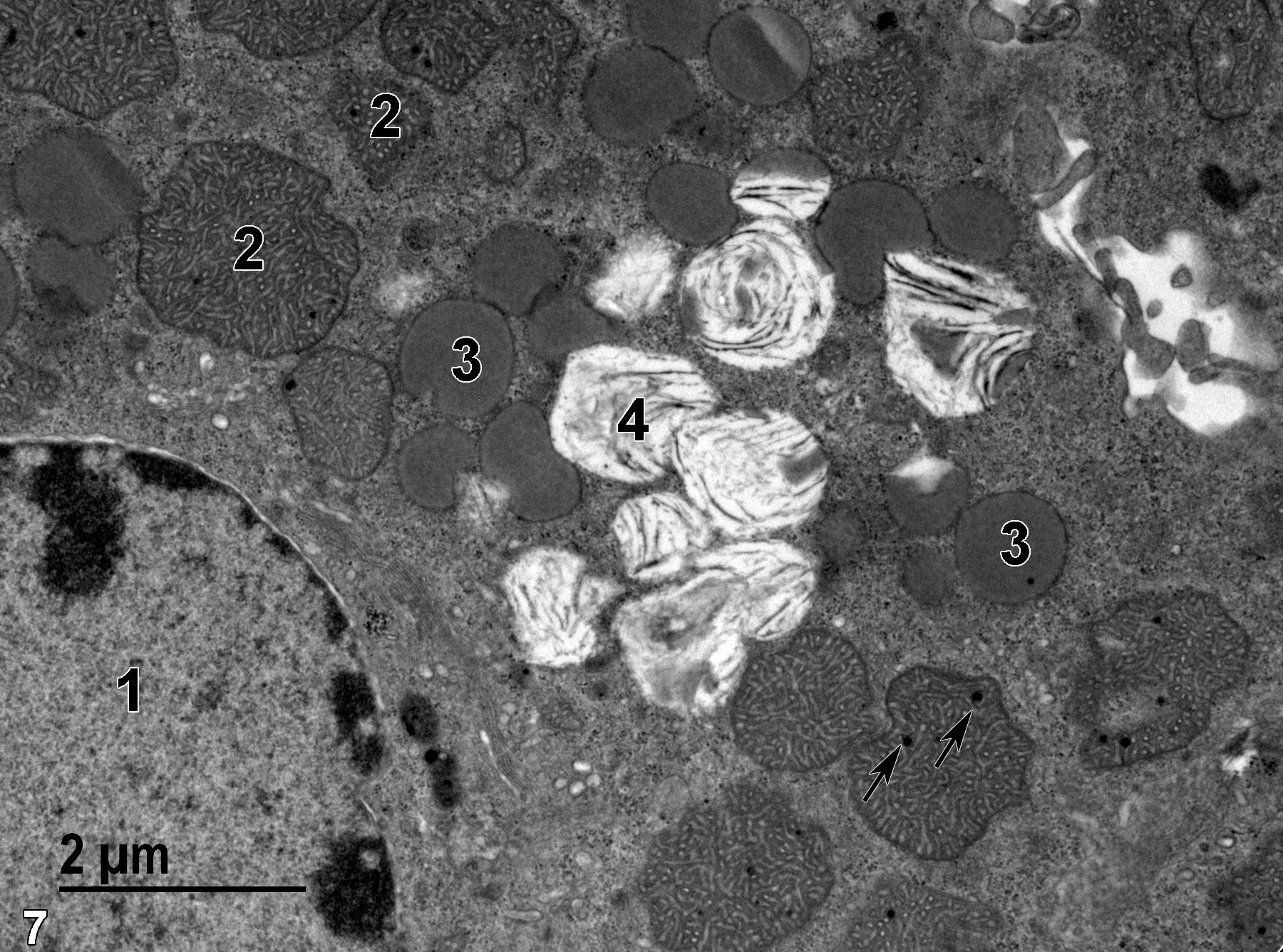

    <strong>Figure 7.</strong> Another zona fasciculata epithelial cell with a nucleus (1) with marginated heterochromatin, numerous mitochondria (2), some of which contain electron-dense granular deposits of calcium (arrows), and the two types of lipid droplet presentation (3 and 4) described in Figure 6. 13000x.
    Figure 7. Another zona fasciculata epithelial cell with a nucleus (1) with marginated heterochromatin, numerous mitochondria (2), some of which contain electron-dense granular deposits of calcium (arrows), and the two types of lipid droplet presentation (3 and 4) described in Figure 6. 13000x.

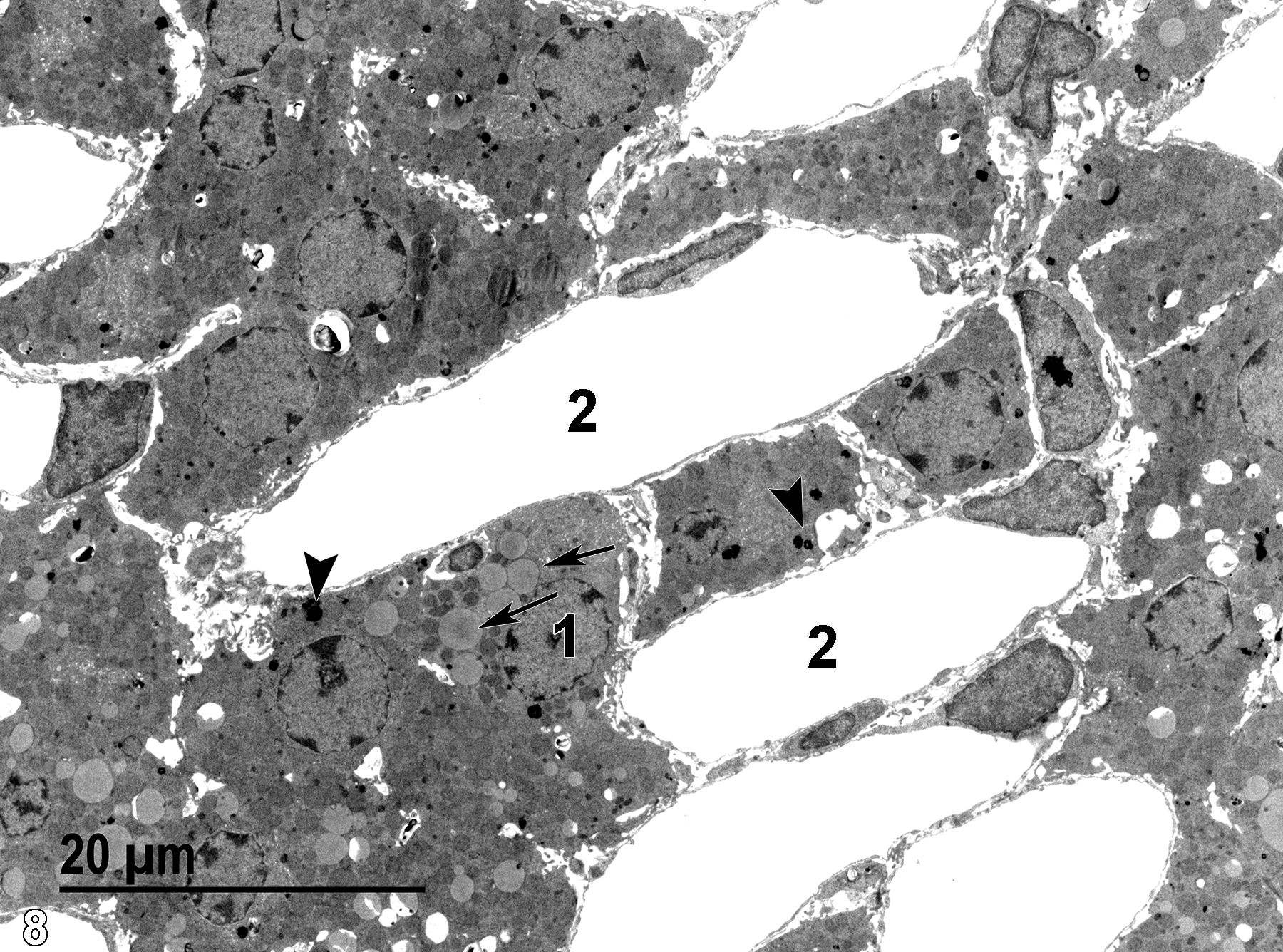

    <strong>Figure 8.</strong> A low magnification view of the zona reticularis, showing a nucleus (1) with marginated heterochromatin, large lipid droplets (arrows), numerous capillaries (2), and prominent electron-dense lysosomes (arrowheads). 1900x.
    Figure 8. A low magnification view of the zona reticularis, showing a nucleus (1) with marginated heterochromatin, large lipid droplets (arrows), numerous capillaries (2), and prominent electron-dense lysosomes (arrowheads). 1900x.
    <strong>Figure 9.</strong> A binucleate (1) epithelial cell of the zona reticularis, lipid droplets, some containing electron-dense inclusions (2, arrows), many irregular and electron-dense lysosomes (3, arrows), and abundant smooth endoplasmic reticulum, some quite visible at this magnification as vesicular profiles located near the irregular and electron-dense lysosomes (3). Mitochondria (4) are quite numerous. Note the microvillous surface of the epithelial cells. 4800x.
    Figure 9. A binucleate (1) epithelial cell of the zona reticularis, lipid droplets, some containing electron-dense inclusions (2, arrows), many irregular and electron-dense lysosomes (3, arrows), and abundant smooth endoplasmic reticulum, some quite visible at this magnification as vesicular profiles located near the irregular and electron-dense lysosomes (3). Mitochondria (4) are quite numerous. Note the microvillous surface of the epithelial cells. 4800x.

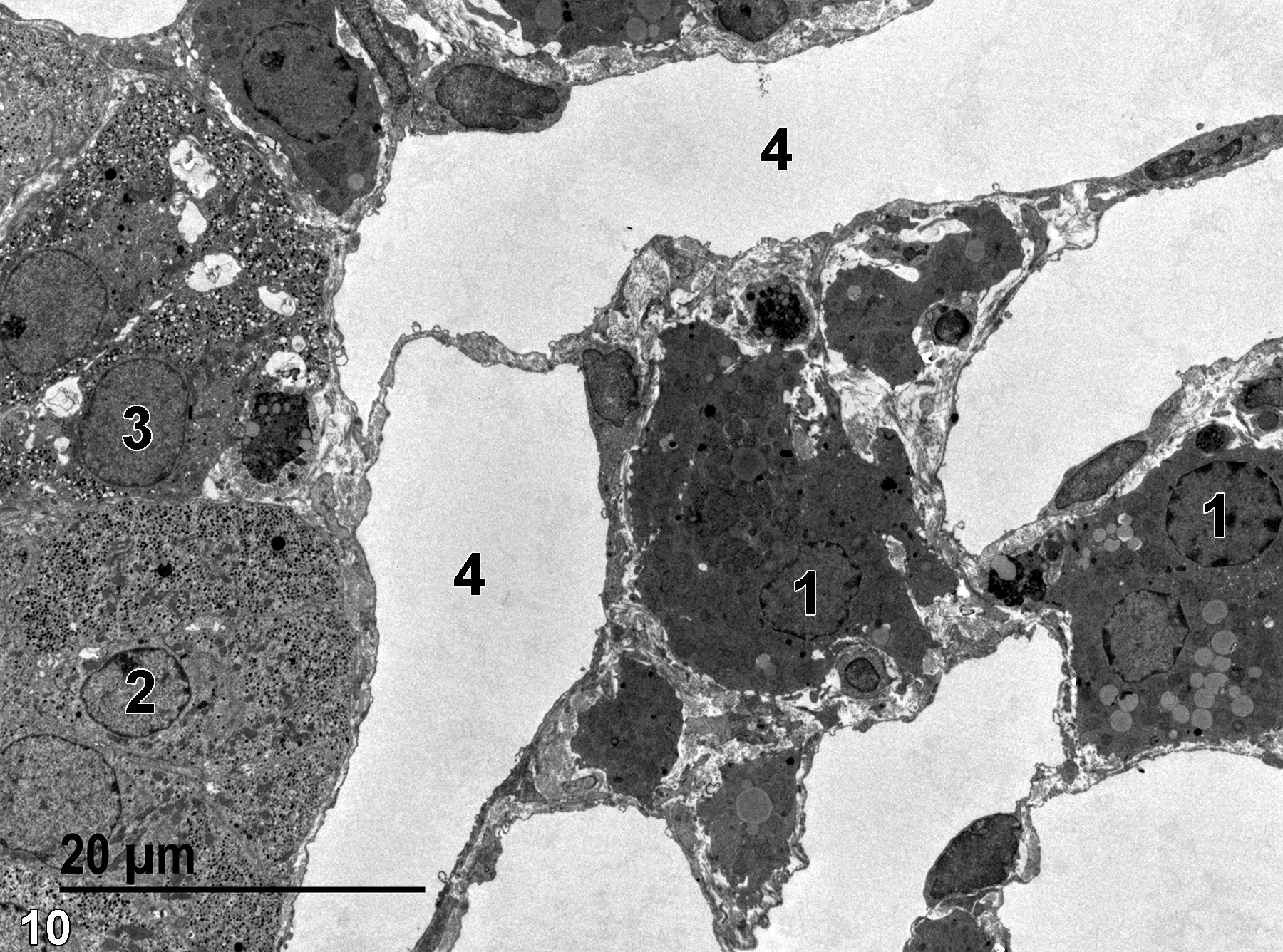

    <strong>Figure 10.</strong> Two zona reticularis cells (1) are shown to the right, as well as an epinephrine medullary cell (2) and a norepinephrine medullary cell (3). The zona reticularis cells are surrounded by numerous capillaries (4). 1900x.
    Figure 10. Two zona reticularis cells (1) are shown to the right, as well as an epinephrine medullary cell (2) and a norepinephrine medullary cell (3). The zona reticularis cells are surrounded by numerous capillaries (4). 1900x.

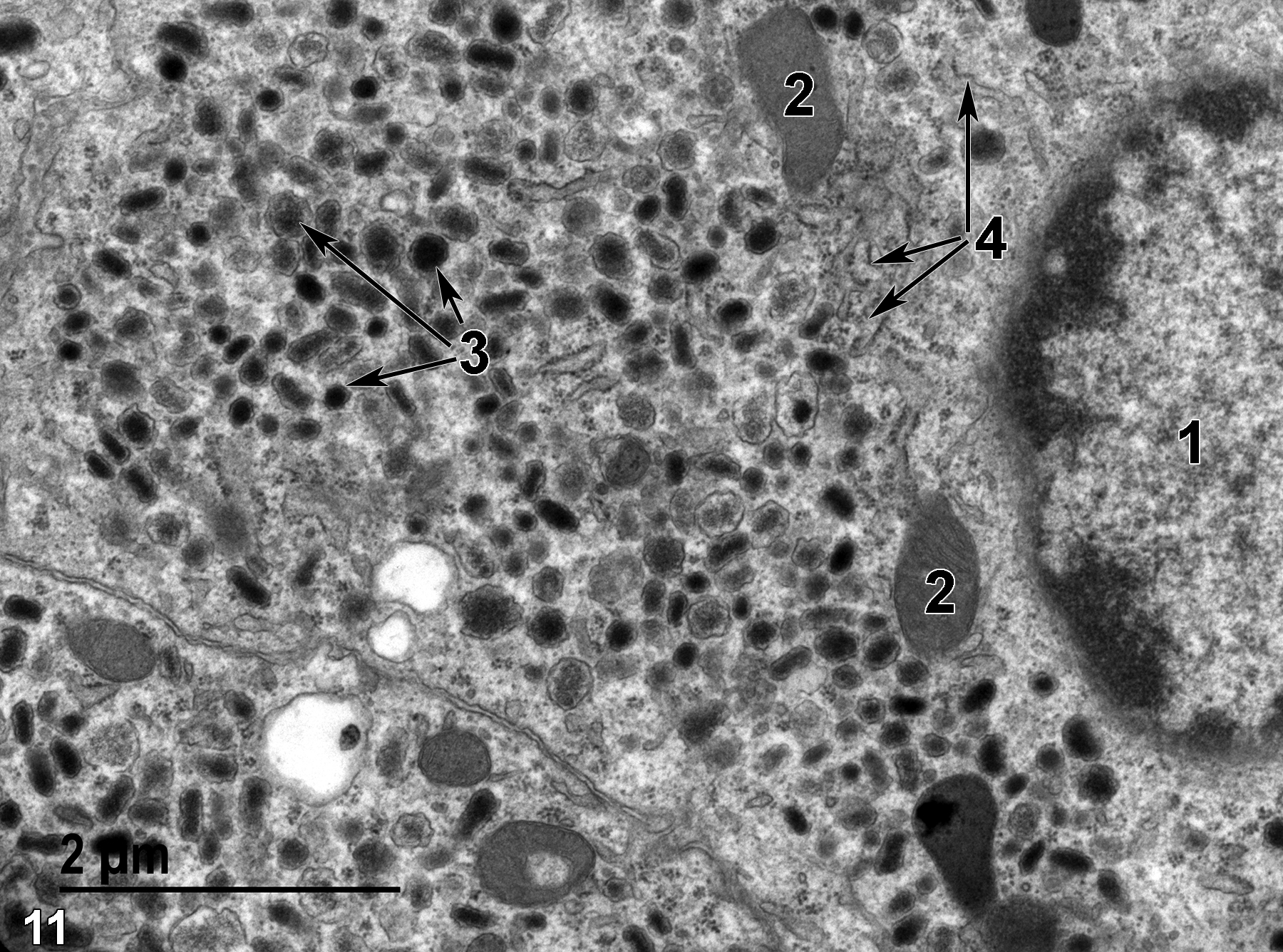

    <strong>Figure 11.</strong> A high magnification view of an epinephrine cell of the medulla with a single nucleus (1), some mitochondria (2), a large number of variably sized secretory granules with variable electron-dense contents (3, arrows), and some profiles of rough endoplasmic reticulum (4, arrows). Aggregates of particulate glycogen and free ribosomes are scattered throughout the cytoplasm. 18500x.
    Figure 11. A high magnification view of an epinephrine cell of the medulla with a single nucleus (1), some mitochondria (2), a large number of variably sized secretory granules with variable electron-dense contents (3, arrows), and some profiles of rough endoplasmic reticulum (4, arrows). Aggregates of particulate glycogen and free ribosomes are scattered throughout the cytoplasm. 18500x.

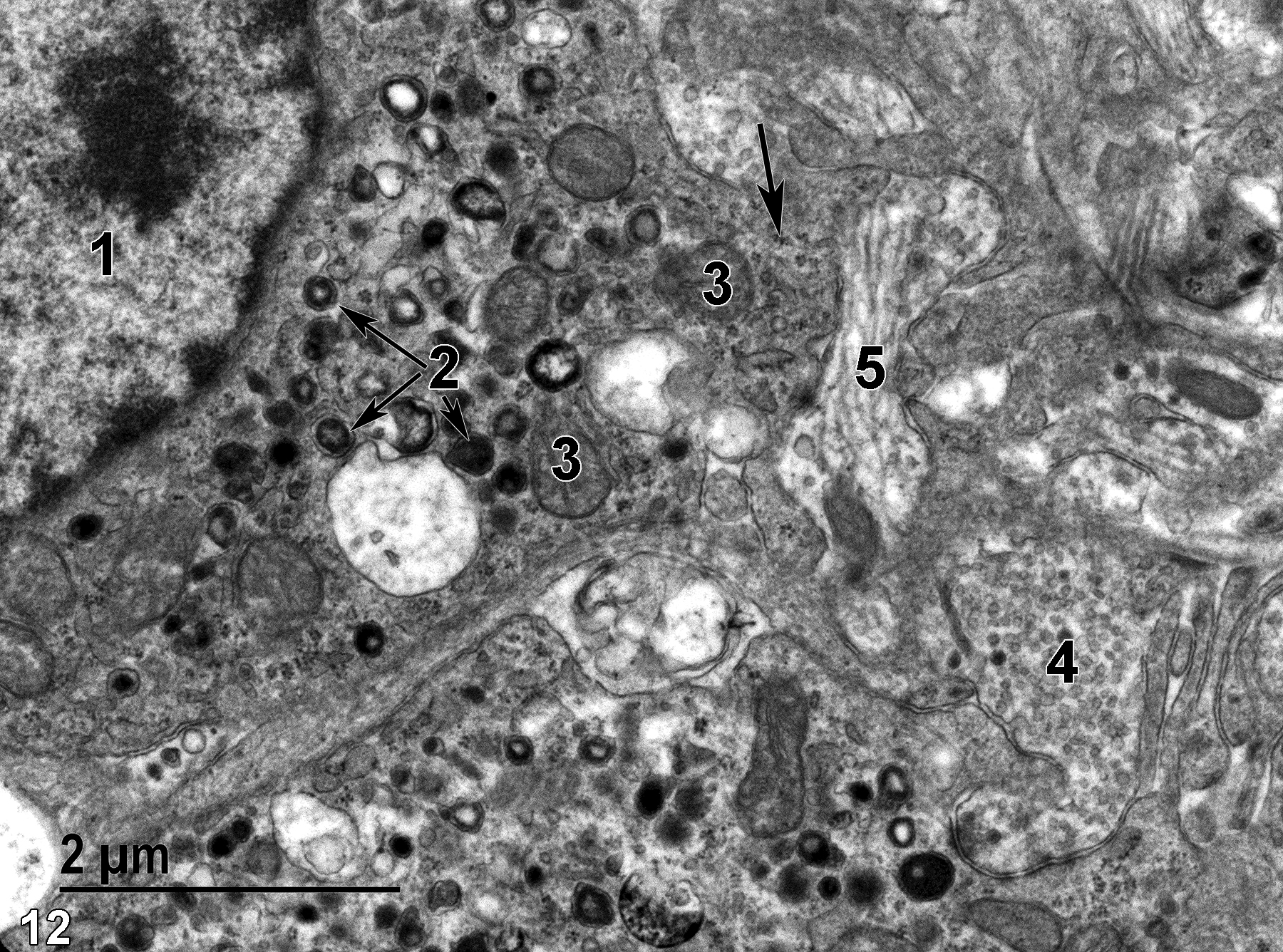

    <strong>Figure 12.</strong> Two norepinephrine cells of the medullary layer. One contains a nucleus (1) with a prominent nucleolus and marginated heterochromatin, as well as a variable population of secretory granules, many with electron-lucent central cores (2, arrows). Mitochondria (3) have elongated tubular cristae. An area of neural cell processes is to the right of the upper norepinephrine cell. Some contain synaptic vesicles (4), whereas others are filled with microtubules and a few vesicles (5). Particulate glycogen clusters are found throughout the cytoplasm (arrow). 18500x.
    Figure 12. Two norepinephrine cells of the medullary layer. One contains a nucleus (1) with a prominent nucleolus and marginated heterochromatin, as well as a variable population of secretory granules, many with electron-lucent central cores (2, arrows). Mitochondria (3) have elongated tubular cristae. An area of neural cell processes is to the right of the upper norepinephrine cell. Some contain synaptic vesicles (4), whereas others are filled with microtubules and a few vesicles (5). Particulate glycogen clusters are found throughout the cytoplasm (arrow). 18500x.
